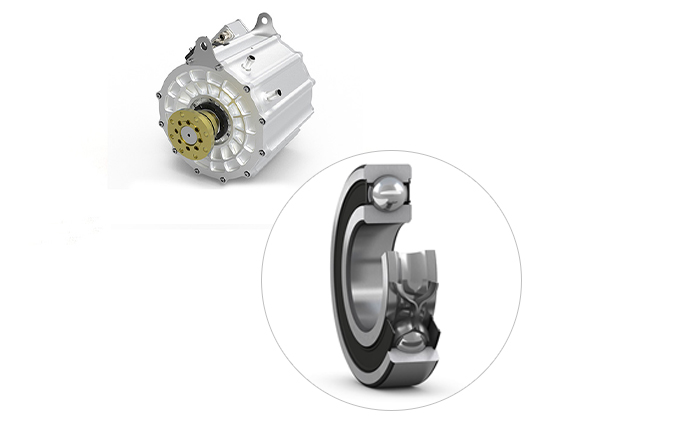

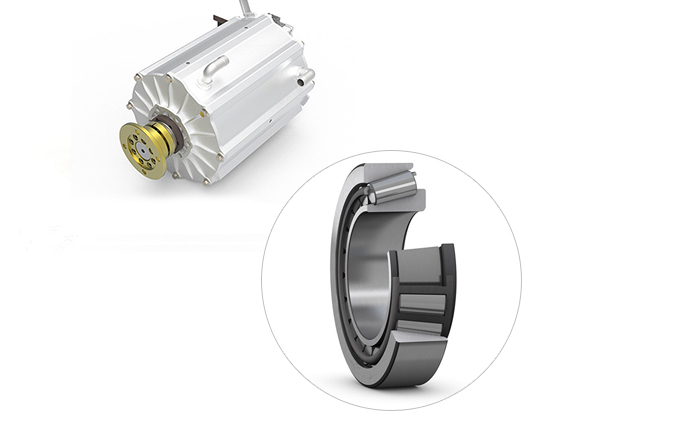

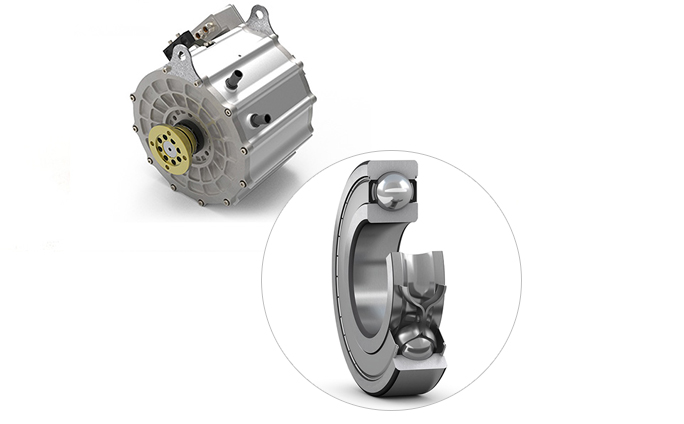

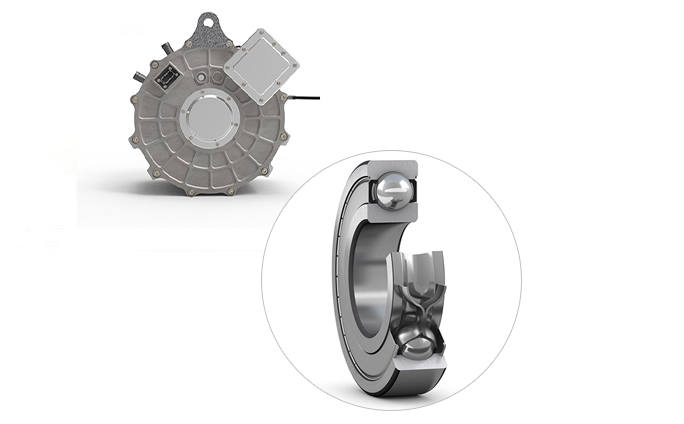

New energy vehicle supporting bearing YYL03A

The supporting bearings for new energy vehicles are crucial components in automobiles.

Technical requirements:

High precision: In order to ensure the precise assembly and operation accuracy of automotive components, automotive supporting bearings usually need to have high dimensional accuracy and rotational accuracy to ensure the concentricity and perpendicularity of rotating parts, reduce vibration and noise.

High reliability: When driving in various complex road conditions and environments, bearings need to be able to maintain stable performance under long-term high loads, high-speed operation, as well as harsh temperature, humidity, and other conditions, with a long service life and low failure rate.

Low friction: Reducing the friction coefficient of bearings can improve the fuel economy of cars and reduce energy loss. Meanwhile, low friction can also lower the operating temperature of bearings and extend their service life.

Technical Parameter

Rated power (KW): 40

Rated speed (rpm): 3000

Rated torque (N.m): 127

Rated voltage AC (V): 248

Rated DC bus voltage DC (V): 350

Minimum bus voltage for full power operation (V): 400

Most efficient zone (%): ≥ 96.5%

High efficiency zone (%): ≥ 90.0%

Insulation level: H

Protection level: IP68

Working noise (dB): ≤ 78

Outer diameter size of water nozzle (mm): 25

Peak power (KW): 80

Peak speed (rpm): 4000

Peak torque (N.m): 195

Rated current (Arms): 132

Maximum phase current (Arms): 300

Maximum speed corresponding to no-load back electromotive force (V): 490

Peak power duration (s): 60

Peak torque duration (s): 30

Motor dimensions (mm): φ 314 * 182

Weight (kg): ≤ 45

Cooling water inlet temperature (℃): ≤ sixty-five

Cooling water flow rate (L/min): ≥ 15

Working environment temperature (℃):- 40/+85

scope of application

Crawler tractor walking/power output motor
